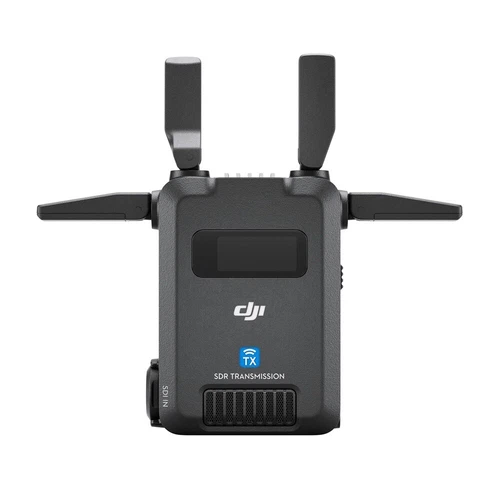

SDR Transmission Transmitter. Available at AST-Drones for $366.00 with fast worldwide shipping. Every unit is inspected by our drone technicians before dispatch.
What’s in the Box
- DJI SDR Transmission Transmitter (TX) × 1
- TX Gimbal Mounting Adapter Plate × 1
- Compatible with these camera models
Specifications
| Weight | Approx. 145 g (including antennas) |
|---|---|
| Dimensions | 86.5×64×32 mm (L×W×H, excluding antennas) |
| Power Consumption | 8.2 W |
| USB-C Power Supply Type 1 | 9 V, 2 A (PD protocol) |
| USB-C Power Supply Type 2 | 6.8-17.2 V DC |
| NP-F Battery Power Supply Voltage | 6.8-8.4 V |
| 1080p | 23.98/24/25/29.97/30/50/59.94/60fps |
| 1080i | 50/50.94/60fps (1080i is not available in Broadcast mode). |
| 720p | 50/59.94/60fps |
| Input Audio Format | SDI embedded, HDMI embedded |
| Video Transmission System | SDR + Wi-Fi |
| Video Coding Format | H.264 |
| Operating Temperature | -10° to 40° C (14° to 104° F) |
- Transmitter
- Ports
- SDI Input Port
- HDMI Input Port
- 3.5mm Stereo Jack
- USB-C Firmware Update Port
- USB-C Power and Gimbal Communication Port
- Operating Frequency
- SDR Operating Frequency
- Non-DFS Frequency Band:
Frequently Asked Questions
What is included with the SDR Transmission Transmitter?
The package includes: DJI SDR Transmission Transmitter (TX) × 1, TX Gimbal Mounting Adapter Plate × 1, Compatible with these camera models.
How long does shipping take for the SDR Transmission Transmitter?
Orders are processed within 1-2 business days. Delivery typically takes 7-14 days to the US and Europe with tracking provided.
Does the SDR Transmission Transmitter come with a warranty?
Yes. All products at AST-Drones are covered by our after-sales support. Contact info@ast-drones.com for any issue and we will make it right.
